TSRf DB Ultegra Di2
TSRf DB Ultegra Di2

TSRf DB Ultegra Di2

Regular price75.990,00 kr
/
Tax included. Shipping calculated at checkout.

The VAT and import duties is included when you buy a bike from us.
Delivery 1. nov 2023
Size

TSRf allows cyclist to commit undivided attention to training and racing, and winning.

Wind tunnel testing confirmed that a combination of the bullet shapes ability to slip through wind and the Kamm tail shapes ability to streamline airflow results in an optimal tube design for high speed TT races.

To Balance hydromechanics and air turbulent flow for forward motion, DARE has developed a way to provide down force for positive airflow. The upper edge of the front fork crown is aligned with the rear stay wind breaking wing in design. The airflow passes through the front fork crown to the rear stay that generates down force to improve stability of the rear triangle, enhancing pedaling revolution efficiency.

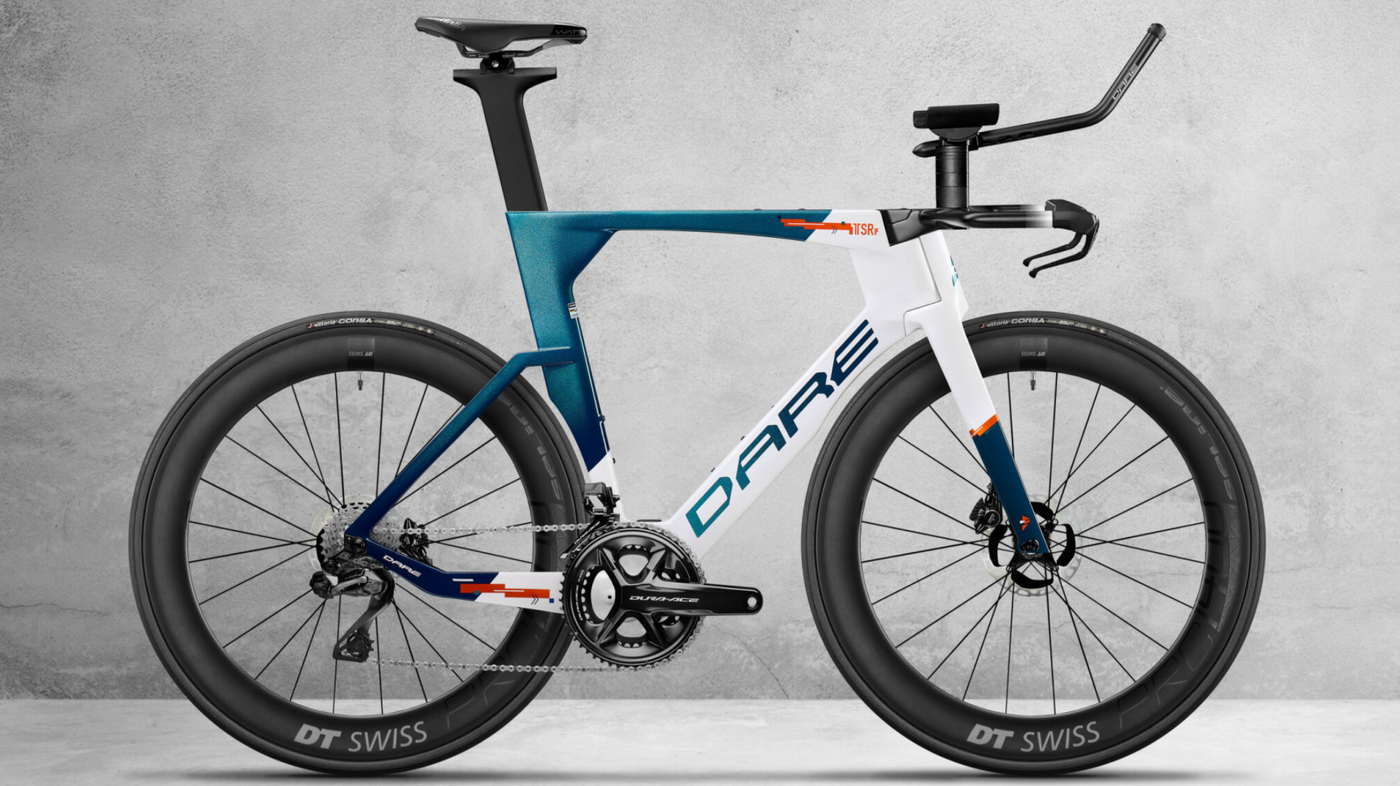

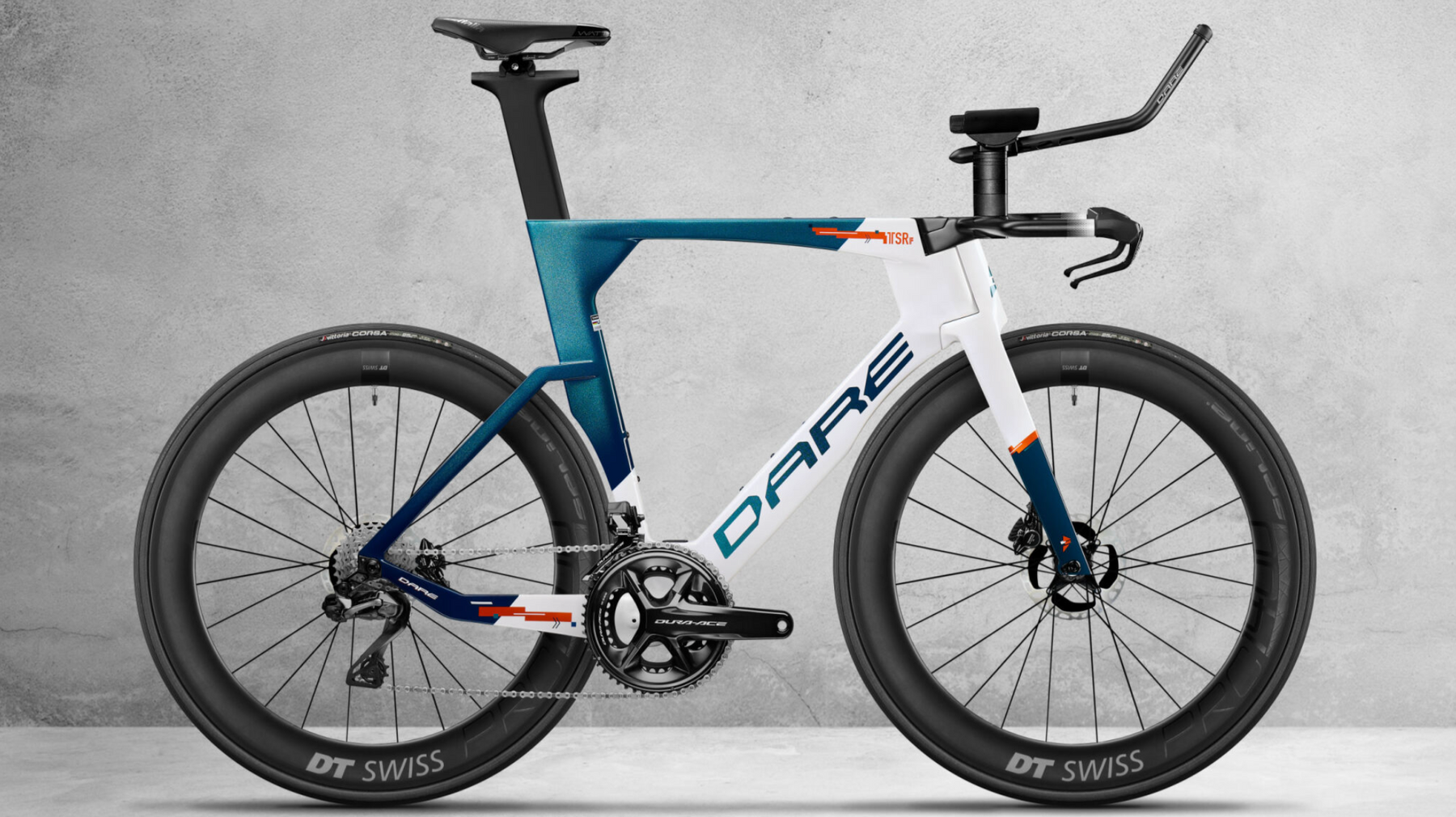

Note; bike is delivered with Ultegra group set, not with Dura-Ace as shown in the picture.



Frame:

  • TSRf
  • Axle dimension: 12/142
  • Material: Carbon
  • Break mount: Flat mount
  • Derailleur hanger: aluminum

Fork:

  • TSRf
  • Axle dimension: 12/100
  • Material: Carbon
  • Break mount: Flat mount
  • Internal cable routing

Rear Derailleur:

  • RD-R8150
  • Ultegra di2 2x12 speed
  • Now simplified with one single derailleur cage length, the new 12-speed Shimano ULTEGRA R8150 rear derailleur is a fast, precise shifting and also a approachable option.

Front Derailleur:

  • FD-R8150
  • Ultegra di2 2x12 speed
  • More compact and faster than ever, the ULTEGRA R8150 front derailleur performs digitally precise front shifts under any circumstances.

Cassette:

  • CS-R8100-12
  • Ultegra 12 speed 11-30
  • On our pTT bike we deliver with 11-30 cassette. Close jumps between the cogs means a stable cadence and high speed.

Chain:

  • CN-M8100
  • Shimano Deore 12-speed.
  • Hyperglide+, Sil-tech

Crank:

  • FC-R8100
  • Ultegra 2x12 speed
  • XXS:170mm
  • XS: 170mm
  • S: 172,5mm
  • M: 172,5mm
  • L: 175mm
  • XL: 175mm

Bottom Bracket:

  • Shimano Pressfit 86,5 mm

Shift Levers:

  • ST-R9180
  • Dura Ace Di2 Hydraulic disc brake

Brake Calipers:

  • BR-R8170
  • Ultegra Hydraulic disc brake caliper

Brake Rotor:

  • RT-CL800
  • Shimano Center lock Disc brake rotor 140mm rear, 160mm front

Wheels:

  • DT Swiss ARC 1400 DICUT Disc Brake
  • Profil: 80mm
  • Hub: 240 / 240 with Ratchet EXP 36
  • Rim: Carbon Hooked
  • Spokes: DT aero comp T-head
  • Weight: 1877g per set

Tyres:

  • Schwalbe Pro One TT Tubeless
  • Combining “souplesse” , speed and control at the highest level. The best road bike tire Schwalbe has ever developed.

Cockpit:

  • TSRf Aerobar
  • Material: Carbon
  • Internal cable routing
  • 408mm width
  • J-bar, L, bar, I-bar or S-bar.

Seatpost:

  • Aero Carbon seatpost
  • Material: Carbon

Saddle:

  • Pro TSA 1.2

This site is protected by hCaptcha and the hCaptcha Privacy Policy and Terms of Service apply.

TSRf - The TT winning formula

TSRf allows cyclists to commit undivided attention to training, racing, and winning.

ARC 1400 80 mm

The ARC 1400 DICUT wheels represent the latest DNA of the 1400 level of DT Swiss and their aero partner SWISS SIDE. The AERO+ profile rims set a new standard in aerodynamic performance and keep aero drag as low as possible under different crosswind angles.

Shimano Ultegra Di2

Faster, wireless electronic shifting, thats why we use Shimano Ultegra 8170 di2 group set on our bikes. Shimano's hallmark precise and reliable shifting performance and a long lasting battery never disapoints.
